Siemens S7-1200 with TIA Portal: The Tutorial Series

Every S7-1200 instruction, one short video at a time: bits, edges, timers, counters, comparators, maths, MOVE, conversion, analog scaling, jumps and shift registers.

  • 9 modules
  • 2h 17m of video
  • Beginner
  • English
  • ₹0, free
  • Lab practice in your browser
Siemens S7-1200 with TIA Portal: The Tutorial Series course cover

₹0Free for good

Worth ₹1,999 by length and depth against classroom training. It has always been free; that is not a former price.

No card. Checkout takes a minute and gives you a receipt.

Overview

About Siemens S7-1200 with TIA Portal: The Tutorial Series

Learn every everyday S7-1200 instruction in TIA Portal through short one-topic videos, from bit logic to shift registers.

Siemens S7-1200 with TIA Portal: The Tutorial Series is a free, self-paced online course from EDWartens for engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation. It has 9 modules and 2h 17m of video lessons by The Automation Craze, with written notes and worked problems, a practical project with a document pack and a 15-question final assessment (pass mark 60%). Learning is free with an account; an optional certificate with a public verification code is issued when you pass. Last updated 27 September 2026.

Who it is for: Engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation

This course includes

  • 2h 17m of video lessons
  • 9 modules with written notes and diagrams
  • One final assessment: 15 questions, pass mark 60%
  • Ask-an-engineer support from practising engineers
  • Lifetime access, the course does not expire
  • Optional verifiable certificate when you finish
  1. Step 1 of 3

    Learn the 9 modules

    2h 17m of video lessons, written notes and a practice task per module, at your own pace.

  2. Step 2 of 3

    Pass the final assessment

    15 questions drawn from every module, pass mark 60%, 3 attempts.

  3. Step 3 of 3

    Take the certificate, if you want it

    Optional, paid once, only if you choose it. The course stays free either way.

    See the certificate and its price

A look inside

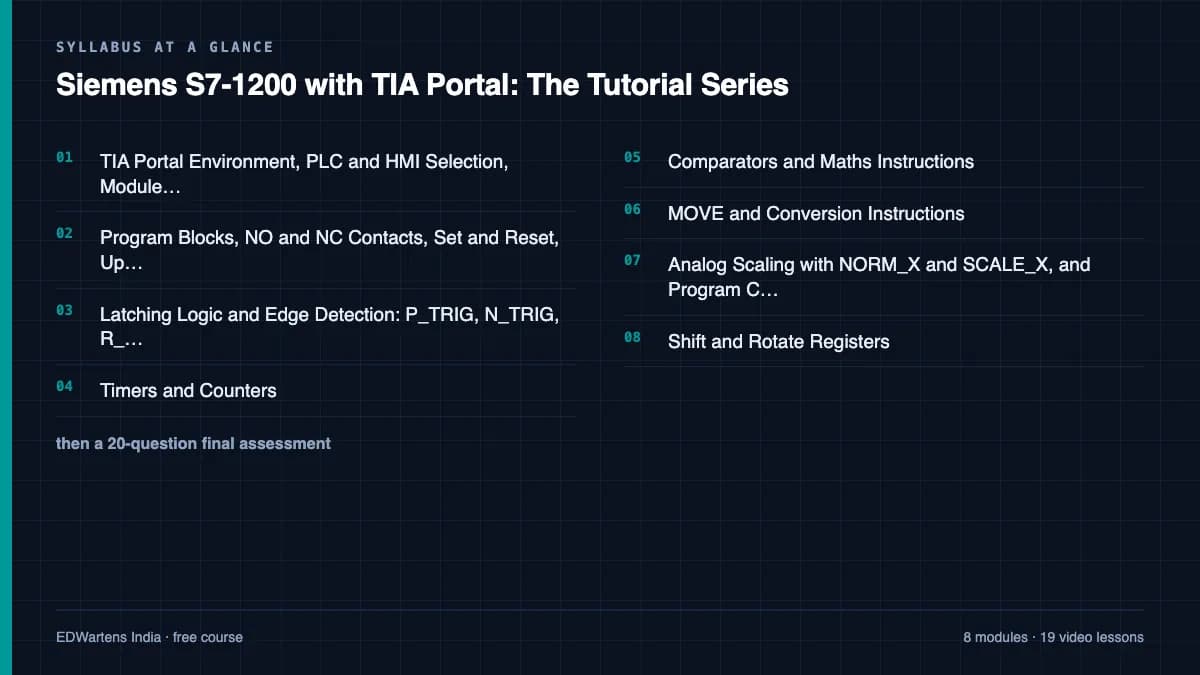

Siemens S7-1200 with TIA Portal: The Tutorial Series: Syllabus at a glance
Syllabus at a glance

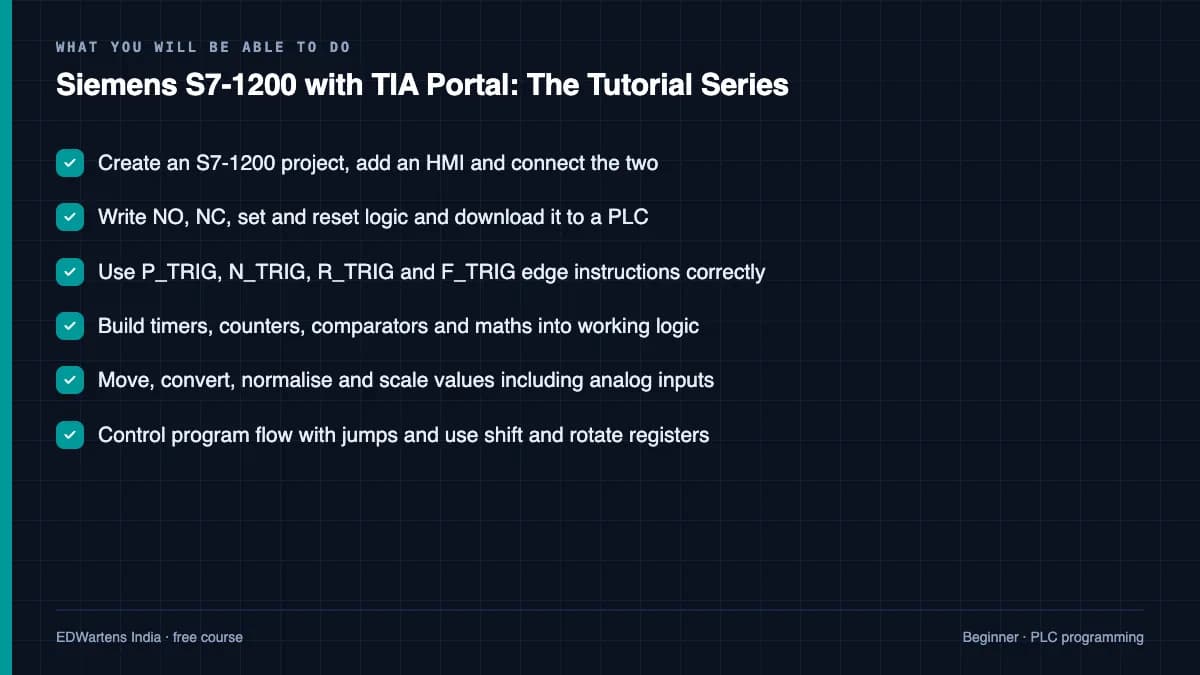

Siemens S7-1200 with TIA Portal: The Tutorial Series: What you will be able to do
What you will be able to do

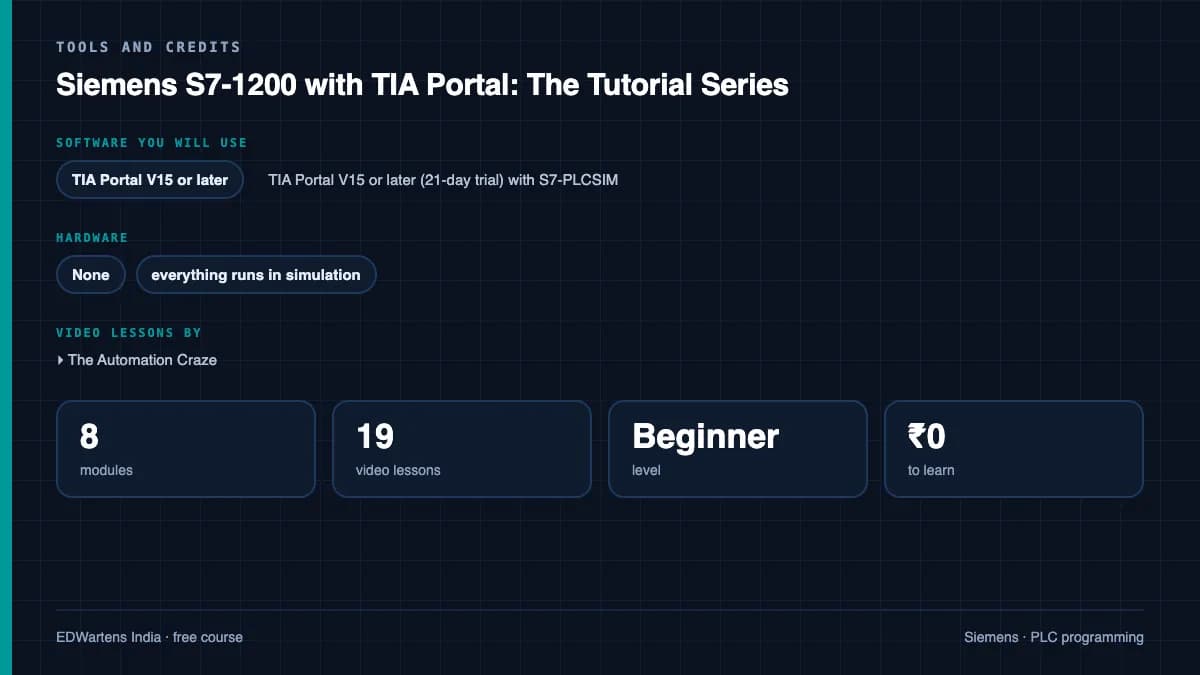

Siemens S7-1200 with TIA Portal: The Tutorial Series: Tools and credits
Tools and credits

From the lessons

  • Siemens TIA Portal - PLC - Tutorial 1 Overview & Environment of TIA Portal

    TIA Portal Environment, PLC and HMI Selection, Modules and Communication

    by The Automation Craze

  • Siemens TIA Portal - PLC - Tutorial 4 Programming Blocks & Other Fuctions Blocks (PLC Automation)

    Program Blocks, NO and NC Contacts, Set and Reset, Upload and Download

    by The Automation Craze

  • Siemens TIA Portal - PLC - Tutorial 10 Latching & Unlatching of Logic (PLC Automation)

    Latching Logic and Edge Detection: P_TRIG, N_TRIG, R_TRIG and F_TRIG

    by The Automation Craze

  • Siemens TIA Portal - PLC - Tutorial 18 Working of Multiple Timer Operations (PLC Automation)

    Timers and Counters

    by The Automation Craze

  • Siemens TIA Portal - PLC - Tutorial 20 Working of Comparator Operations PLC Automation

    Comparators and Maths Instructions

    by The Automation Craze

  • Siemens TIA Portal - PLC - Tutorial 22 - Working of Move Operations (S71200, S71500)

    MOVE and Conversion Instructions

    by The Automation Craze

Lesson frames belong to the creators named in the Credits and are shown from YouTube.

What you learn

What you will be able to do

By the end you will be able to:

  • Set up an S7-1200 project with its HMI
  • Write and download ladder logic
  • Use edges, timers, counters and comparators
  • Use MOVE, conversion, NORM_X and SCALE_X
  • Explain what each instruction group does

How it works

How this course works

  1. Watch the lessons

    Short video lessons, one module at a time, at your own pace.

  2. Read the notes

    Open the Reading tab for the written notes and diagrams of the module.

  3. Practise in the 3D labOptional

    Try the module in the free 3D lab, in your browser.

  4. Check yourself

    Answer the questions to see what stuck before you move on.

  5. Final assessment

    Pass the final once you have been through the modules.

  6. Certificate, if you want oneOptional

    Optional, with a page anyone can use to verify it.

Syllabus

Course content, module by module

In order, at whatever pace suits you. Each module ends with a practice task that builds on the last.

Modules
9
Video lessons
19
Of video
2h 17m
Final questions
15
  1. 01

    TIA Portal Environment, PLC and HMI Selection, Modules and Communication

    3 lessons · 13m
  2. 02

    Program Blocks, NO and NC Contacts, Set and Reset, Upload and Download, with lab practice:

    3 lessons · 17m
  3. 03

    Latching Logic and Edge Detection: P_TRIG, N_TRIG, R_TRIG and F_TRIG, with lab practice:

    3 lessons · 18m
  4. 04

    Timers and Counters, with lab practice:

    2 lessons · 21m
  5. 05

    Comparators and Maths Instructions, with lab practice:

    2 lessons · 29m
  6. 06

    MOVE and Conversion Instructions, with lab practice:

    2 lessons · 16m
  7. 07

    Analog Scaling with NORM_X and SCALE_X, and Program Control Jumps, with lab practice:

    2 lessons · 17m
  8. 08

    Shift and Rotate Registers, with lab practice:

    1 lesson · 7m

  9. Final assessment · 15 questions, pass mark 60%

3D lab

Practise in the 3D lab

Practise the same contacts, latches, timers, counters and scaling you write in TIA Portal on working machines in the PLC lab, then pass each lab test.

Build a ladder rungWatch

Optional. Skip it whenever you like: it never blocks your progress or your certificate.

Project

The course project

Optional practice that ends in the kind of job the course prepares you for, with the documents that go with it.

About 14 hours

Bottle-cap check and batching station: counters, comparators, scaling and a shift register on an S7-1200

Design, program, test and document a station on a pharma packaging line. It checks every capped bottle for cap presence, cap height and fill weight. It tracks a reject decision six pitches down the belt to a pusher. It batches good bottles into trays of a set count. You use every instruction group the course taught on an S7-1214C with an SM 1231 analog module and a KTP700. You deliver the program, your own I/O list and FAT record, and the hand-over note. The sample pack shows what an integrator delivers for the same station.

This project at a glance
  1. 9documents in the pack
  2. 9steps to follow
  3. Laboptional: in the 3D lab
  4. 5things to hand in
  5. 14 hof work, at your pace

Do it in the lab: 5 steps.

Sample document pack, 9 documents, filled in for the scenario

  • FDSFunctional Design Specification: Cap Check and Batching Station CAP-1
  • I/O listI/O List: Panel CP-21
  • BOMBill of Materials: Panel CP-21 and Field Devices
  • Tag listPLC Tag List and Naming Convention
  • Alarm listAlarm List: Station CAP-1
  • Interlock listInterlock and Permissive List: Station CAP-1
  • FATFactory Acceptance Test Record: Panel CP-21
  • O&M manualOperation and Maintenance Manual: Station CAP-1 (Operation section)
  • Handover certificateSite Acceptance and Handover Certificate: Station CAP-1

Read inside the course and download as a workbook. The project is optional practice, marked when you submit it; the certificate needs only the modules and the final assessment.

Tools

Software, hardware and lessons

Software

TIA Portal V21 trial (21 days) with S7-PLCSIM V21, on 64-bit Windows 11 Pro or Enterprise; any version from V15 on covers what this course teaches

Hardware

None, everything runs in simulation

Who it is for

Beginner. A second route into TIA Portal for anyone who prefers short, one-topic videos.

Video lessons by

  • The Automation Craze

Independent creators, credited in full under Credits.

Software you need

What to download, where from, what it costs and how to install it. Every link goes to the maker's own site, never a mirror.

Required

  1. 01

    SIMATIC STEP 7 Professional and WinCC (TIA Portal) V21 Trial

    Siemens

    Free trial: 21 days
    Runs on
    Windows 11 Pro or Enterprise 64-bit (24H2), Windows 10 Enterprise 2021 LTSC, or Windows Server 2022/2025. Windows 11 Home is supported only for the Basic editions.
    Account
    A free Siemens account registered for Industry Online Support (SiePortal)
    Size
    about 8.1 GB for the main ISO, plus an optional 3.1 GB DVD 2 with hardware support packages

    Siemens lets registered users download the V21 trial of STEP 7 (Basic and Professional), STEP 7 Safety and WinCC and test it for 21 days. The same package is used for the full product; after 21 days you need a purchased licence to keep working.

    Official download pagesupport.industry.siemens.com

    Alternatives

    • TIA Portal Cloud trial: 21 days free in a cloud virtual machine, no install. Sessions are limited to one hour and it is not available in every country.
  2. 02

    S7-PLCSIM V21 (TIA Portal) Trial

    Siemens

    Free trial: 21 days
    Runs on
    Windows 11 Pro or Enterprise 64-bit (24H2), Windows 10 Enterprise 2021 LTSC, or Windows Server 2022/2025. Windows 11 Home is supported only for the Basic editions.
    Account
    A free Siemens account registered for Industry Online Support (SiePortal)
    Size
    about 2.5 GB (ISO)

    S7-PLCSIM V21 is offered as a 21-day trial on the same Siemens page as the STEP 7 and WinCC V21 trial. It needs STEP 7 V21 installed on the same PC.

    Official download pagesupport.industry.siemens.com

Checked against each maker's own page on 27 September 2026. Trial lengths and editions change; the maker's page is the final word.

What you walk away with

Your certificate for Siemens S7-1200 with TIA Portal: The Tutorial Series

Finish the course, pass the final, and this is the document with your name on it.

Sample Wartens Certificate of Completion for Siemens S7-1200 with TIA Portal: The Tutorial Series, issued through the EDWartens training portal
Sample. The issued certificate carries your name, your final score, a unique certificate ID and its own QR code.

  • Verifiable by anyone

  • Adds to LinkedIn in one click

  • QR code on the certificate

  • Names what you can do

  • A permanent link

  • Earned, not attended

Learning is free. The certificate is optional.

Add it now and pay only when you have finished the course, or come back for it later. One-off, US$23.99, with a receipt.

Issued by Wartens Ltd (England and Wales, company no. 15262249) through the EDWartens training portal, as a Certificate of Completion for this self-paced course. Sold in India by Wartens Automation Private Limited. It is not a vendor certification, a university award or a CPD-accredited activity, and it does not certify competence on live equipment. Delivered electronically; see the refund policy.

Practise what you learn in the free 3D lab

Technical work is judged on what you can do: wiring, commissioning, finding a fault. Doing a task yourself teaches more than watching it a second time, and a lab lets you try it safely before you meet real equipment. It does not replace working on real hardware.

See the 3D lab
  • Practise safely, so a mistake costs nothing.
  • The lab checks your work like a site test, so you know when it is right.
  • Free, in your browser, with nothing to install.

Why learn with EDWartens

What you get with this course.

  • Free from the first lesson to the final assessment.
  • Practice in a free 3D lab in your browser, with nothing to install.
  • Video lessons with written notes and a project.
  • An optional certificate that anyone can verify online.

FAQ

Common questions

How is this different from the Siemens TIA Portal foundation course?

That course is a six-week study plan built around one lesson series. This one is instruction by instruction, in the order the S7-1200 instruction tree lists them, so it works as a reference you can jump around in.

Do I need an S7-1200?

No. Everything is shown in TIA Portal with PLCSIM. A real S7-1200 helps for the download module but is not required.

Is the Siemens S7-1200 with TIA Portal: The Tutorial Series course really free?

Yes. Every module, practice task and assessment. You create an account so your progress is saved and the assessments can be marked. The certificate is the only paid item, and only if you want it.

What certificate do I get, and is it a Siemens qualification?

An EDWartens Certificate of Completion, issued when you pass the final assessment, with a verification code anyone can check. It is not a Siemens credential and is never described as one.

Who made the video lessons in the Siemens S7-1200 with TIA Portal: The Tutorial Series course?

The creators named in the Credits block at the foot of this page, on their own YouTube channels. EDWartens did not make the videos and the creators are not affiliated with EDWartens. What EDWartens wrote is the study plan, the notes, the practice tasks and the assessments.

How long does the Siemens S7-1200 with TIA Portal: The Tutorial Series course take?

Plan on about 5 hours in all, including the video lessons, notes and practice tasks. It is self-paced, so you work through the nine modules at your own speed.

What will I be able to do when I finish?

Set up an S7-1200 project with its HMI, write and download ladder logic, and use every everyday instruction group, from bit logic, edges, timers and counters to MOVE, NORM_X, SCALE_X, jumps and shift registers. You will also be able to explain what each instruction does.

Do I have to use the lab?

No. The lab is optional practice. You can skip it whenever you like, and it never blocks your progress, the final assessment or your certificate.

Is the lab free?

Yes. Every lab level for this course opens in your browser, free, with nothing to install.

Is the Siemens S7-1200 with TIA Portal: The Tutorial Series course free in India, and what does the certificate cost?

Yes. Learning costs ₹0 in India: every module, the written notes, the practice tasks and the final assessment, with no card and no trial period. The only paid item is the optional EDWartens Certificate of Completion, ₹499 including GST for this beginner course, paid in rupees through Razorpay, and only if you want it after passing the final assessment.

Is there classroom PLC training in India as well?

Yes. EDWartens India runs the Automation Engineer Program (AEP), a classroom programme at its Electronic City centre in Bangalore. The Automation Engineer Program (AEP) teaches Siemens PLC programming in TIA Portal in person at our Electronic City centre, alongside the other PLC brands it covers. This free course is separate and fully online; it is a good way to try the subject before deciding on classroom training. Details are at edwartens.co.in/siemens-tia-portal-training-bangalore, and the programme itself at edwartens.co.in/courses/aep.

All course facts
Price
₹0, free for good. No trial, no card. Comparable classroom training of this length costs about ₹1,999.
Who it is for
Engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation
Format
9 self-paced modules, 2h 17m of video, written notes, a practice task per module and one final assessment.
Level
Beginner. Beginner. A second route into TIA Portal for anyone who prefers short, one-topic videos.
Brand
Siemens
Software
TIA Portal V21 trial (21 days) with S7-PLCSIM V21, on 64-bit Windows 11 Pro or Enterprise; any version from V15 on covers what this course teaches
Hardware
None, everything runs in simulation
Certificate
Optional EDWartens Certificate of Completion, ₹499 inclusive of GST for learners in India, verifiable by code. Not a vendor credential.
Video lessons by
The Automation Craze (independent creators, credited below)
Language
English
Last updated
27 September 2026
