Siemens TIA Portal: Organisation Blocks, Interrupts and Timers

What the S7-1200 and S7-1500 do between your rungs: OB1 and the cycle, OB100 at startup, time-delay, cyclic and hardware interrupts, the error OBs that keep a CPU out of STOP or make a silent fault visible, time of day, and every timer the instruction tree offers.

8 modules
3h 48m of video
Intermediate
English
₹0, free

Siemens TIA Portal: Organisation Blocks, Interrupts and Timers course cover

₹0Free for good

Worth ₹2,499 by length and depth against classroom training. It has always been free; that is not a former price.

No card. Checkout takes a minute and gives you a receipt.

Overview

About Siemens TIA Portal: Organisation Blocks, Interrupts and Timers

Siemens TIA Portal: Organisation Blocks, Interrupts and Timers is a free, self-paced online course from EDWartens for engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation. It has 8 modules and 3h 48m of video lessons by Hegamurl, with written notes and worked problems, a practical project with a document pack and a 15-question final assessment (pass mark 60%). Learning is free with an account; an optional certificate with a public verification code is issued when you pass. Last updated 27 September 2026.

Who it is for: Engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation

This course includes

3h 48m of video lessons
8 modules with written notes and diagrams
One final assessment: 15 questions, pass mark 60%
Ask-an-engineer support from practising engineers
Lifetime access, the course does not expire
Optional verifiable certificate when you finish

Step 1 of 3
Learn the 8 modules
3h 48m of video lessons, written notes and a practice task per module, at your own pace.
Step 2 of 3
Pass the final assessment
15 questions drawn from every module, pass mark 60%, 3 attempts.
Step 3 of 3
Take the certificate, if you want it
Optional, paid once, only if you choose it. The course stays free either way.
See the certificate and its price

A look inside

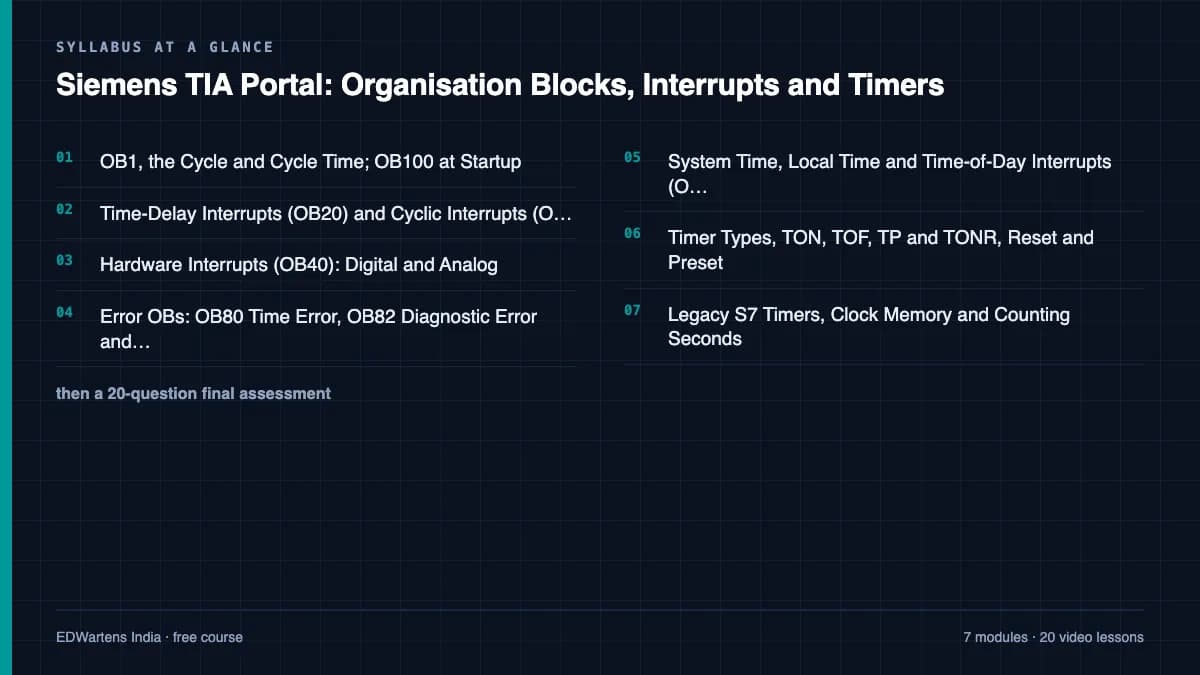

Siemens TIA Portal: Organisation Blocks, Interrupts and Timers: Syllabus at a glance — Syllabus at a glance

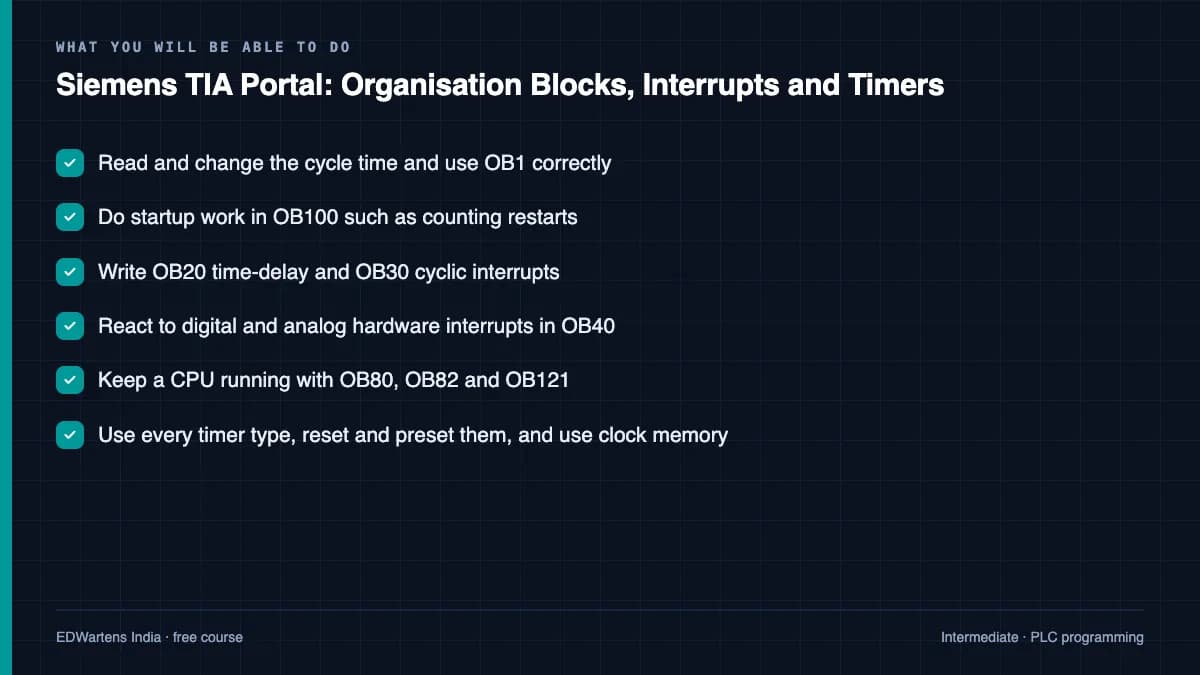

Siemens TIA Portal: Organisation Blocks, Interrupts and Timers: What you will be able to do — What you will be able to do

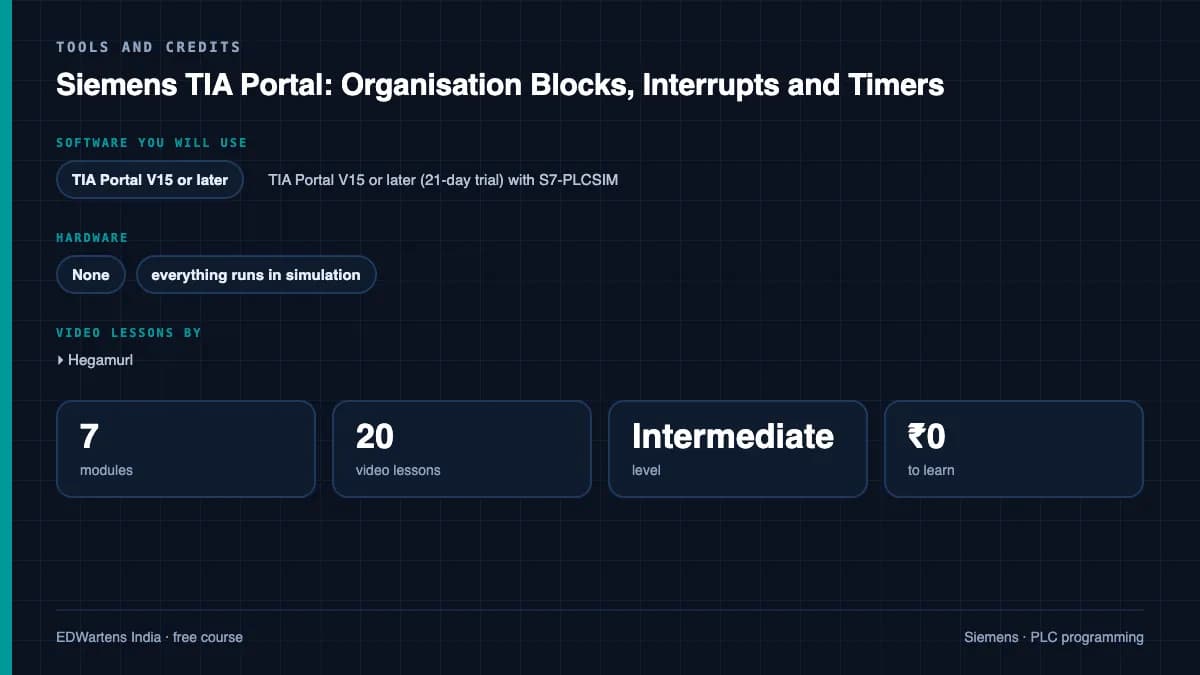

Siemens TIA Portal: Organisation Blocks, Interrupts and Timers: Tools and credits — Tools and credits

From the lessons

OB1, the Cycle and Cycle Time; OB100 at Startup
by Hegamurl
Time-Delay Interrupts (OB20) and Cyclic Interrupts (OB30)
by Hegamurl
Hardware Interrupts (OB40): Digital and Analog
by Hegamurl
Error OBs: OB80 Time Error, OB82 Diagnostic Error and OB121 Programming Error
by Hegamurl
System Time, Local Time and Time-of-Day Interrupts (OB10)
by Hegamurl
Timer Types, TON, TOF, TP and TONR, Reset and Preset
by Hegamurl

Lesson frames belong to the creators named in the Credits and are shown from YouTube.

What you learn

What you will be able to do

Explain the S7-1200/1500 cycle and read its cycle time, use OB100 for startup work, write time-delay, cyclic and hardware interrupt OBs, handle time errors, diagnostic errors and programming errors in OB80, OB82 and OB121, work with system and local time, and use TON, TOF, TP, TONR, legacy timers and clock memory correctly.

Read and change the cycle time and use OB1 correctly
Do startup work in OB100 such as counting restarts
Write OB20 time-delay and OB30 cyclic interrupts
React to digital and analog hardware interrupts in OB40
Keep a CPU running with OB80, OB82 and OB121
Use every timer type, reset and preset them, and use clock memory

Syllabus

Course content, module by module

In order, at whatever pace suits you. Each module ends with a practice task that builds on the last.

Modules: 8
Video lessons: 20
Of video: 3h 48m
Final questions: 15

01
OB1, the Cycle and Cycle Time; OB100 at Startup
2 lessons · 18m
02
Time-Delay Interrupts (OB20) and Cyclic Interrupts (OB30)
2 lessons · 26m
03
Hardware Interrupts (OB40): Digital and Analog
2 lessons · 21m
04
Error OBs: OB80 Time Error, OB82 Diagnostic Error and OB121 Programming Error
4 lessons · 56m
05
System Time, Local Time and Time-of-Day Interrupts (OB10)
3 lessons · 28m
06
Timer Types, TON, TOF, TP and TONR, Reset and Preset
3 lessons · 41m
07
Legacy S7 Timers, Clock Memory and Counting Seconds
3 lessons · 38m
08
Final Assessment
1 lesson · 10m
Final assessment · 15 questions, pass mark 60%

Project

The course project

Optional practice that ends in the kind of job the course prepares you for, with the documents that go with it.

About 16 hours

Stamping press production control: stroke counting in OB40, cushion watch in OB30, shift changeover in OB10

Design, program, test and document the production-control PLC for a 250-tonne mechanical press: exact stroke counting from a crank proximity sensor in a hardware-interrupt OB, a 20 ms cyclic interrupt that watches die-cushion pressure, a time-of-day interrupt that closes the shift totals, lubrication and cushion timing with TON, TOF, TP and TONR, and error OBs that log a broken analog wire instead of stopping the CPU. You deliver the program, your own I/O list and FAT record, and the software design specification that explains every OB. The sample pack shows what an integrator delivers for the same press.

Sample document pack, 8 documents, filled in for the scenario

Control narrativeControl Narrative: Press PR-3 Production Control
SDSSoftware Design Specification: Press PR-3 Production Control
I/O listI/O List: Panel CP-31
BOMBill of Materials: Panel CP-31 and Field Instruments
Alarm listAlarm List: Press PR-3
Interlock listInterlock and Permissive List: Press PR-3
FATFactory Acceptance Test Record: Panel CP-31
O&M manualOperation and Maintenance Manual: Press PR-3 Production Control (Operation section)

Read inside the course and download as a workbook. The project is optional practice, marked when you submit it; the certificate needs only the modules and the final assessment.

Tools

Software, hardware and lessons

Software

TIA Portal V21 trial (21 days) with S7-PLCSIM V21, on 64-bit Windows 11 Pro or Enterprise; any version from V15 on covers what this course teaches

Hardware

None, everything runs in simulation

Who it is for

Intermediate. You should already write ladder in TIA Portal.

Video lessons by

Hegamurl

Independent creators, credited in full under Credits.

Software you need

What to download, where from, what it costs and how to install it. Every link goes to the maker's own site, never a mirror.

Required

01
SIMATIC STEP 7 Professional and WinCC (TIA Portal) V21 Trial
Siemens
Free trial: 21 days
Runs on
Windows 11 Pro or Enterprise 64-bit (24H2), Windows 10 Enterprise 2021 LTSC, or Windows Server 2022/2025. Windows 11 Home is supported only for the Basic editions.
Account
A free Siemens account registered for Industry Online Support (SiePortal)
Size
about 8.1 GB for the main ISO, plus an optional 3.1 GB DVD 2 with hardware support packages
Siemens lets registered users download the V21 trial of STEP 7 (Basic and Professional), STEP 7 Safety and WinCC and test it for 21 days. The same package is used for the full product; after 21 days you need a purchased licence to keep working.
Show the 6 stepsHide the steps
Steps
1. 1.Open the Siemens trial page (entry 109989774) and sign in with your Siemens Industry Online Support account.
2. 2.Download TIA_Portal_STEP7_Safety_WinCC_V21.iso (8.1 GB).
3. 3.Download S7-PLCSIM_V21.iso (2.5 GB) from the same page: PLCSIM is a separate download.
4. 4.Right-click each ISO, choose Mount, and run Start.exe as administrator. Install STEP 7 and WinCC first, then PLCSIM.
5. 5.Follow the setup, accept the licence terms and restart the PC when asked.
6. 6.Open TIA Portal V21 and create a new project to confirm it runs.
- Install from a local drive with plenty of free space; Siemens lists 20 GB free as the minimum and the ISOs alone are over 10 GB.
- You only need DVD 2 if you want extra hardware support packages.
- If you cannot install locally, Siemens also offers a 21-day TIA Portal Cloud trial in the browser (one-hour sessions, not in every country).
Official download pagesupport.industry.siemens.com
Alternatives
- TIA Portal Cloud trial: 21 days free in a cloud virtual machine, no install. Sessions are limited to one hour and it is not available in every country.
02
S7-PLCSIM V21 (TIA Portal) Trial
Siemens
Free trial: 21 days
Runs on
Windows 11 Pro or Enterprise 64-bit (24H2), Windows 10 Enterprise 2021 LTSC, or Windows Server 2022/2025. Windows 11 Home is supported only for the Basic editions.
Account
A free Siemens account registered for Industry Online Support (SiePortal)
Size
about 2.5 GB (ISO)
S7-PLCSIM V21 is offered as a 21-day trial on the same Siemens page as the STEP 7 and WinCC V21 trial. It needs STEP 7 V21 installed on the same PC.
Show the 5 stepsHide the steps
Steps
1. 1.Open the Siemens STEP 7 and WinCC V21 trial page (entry 109989774) and sign in.
2. 2.Install STEP 7 V21 from the main TIA Portal ISO first.
3. 3.Download S7-PLCSIM_V21.iso (2.5 GB) from the section Download S7-PLCSIM Standard V21.
4. 4.Mount the ISO, run Start.exe as administrator and follow the setup.
5. 5.In TIA Portal, select your CPU and click Start simulation to open PLCSIM.
- Siemens notes that the PLCSIM Standard V21 installation also includes S7-PLCSIM Advanced V8.0.
Official download pagesupport.industry.siemens.com

Checked against each maker's own page on 27 September 2026. Trial lengths and editions change; the maker's page is the final word.

What you walk away with

Your certificate for Siemens TIA Portal: Organisation Blocks, Interrupts and Timers

Finish the course, pass the final, and this is the document with your name on it.

Sample Wartens Certificate of Completion for Siemens TIA Portal: Organisation Blocks, Interrupts and Timers, issued through the EDWartens training portal — Sample. The issued certificate carries your name, your final score, a unique certificate ID and its own QR code.

Verifiable by anyone
A unique certificate number and a public verification page. A recruiter checks it in ten seconds.
Adds to LinkedIn in one click
Issuer, credential ID and URL prefilled, with 6 matching skills to pin to your profile.
QR code on the certificate
Scans straight to the verification page, so a printed copy proves itself.
Names what you can do
Lists the topics covered, from ob1, the cycle and cycle time; ob100 startup to timers ton, tof, tp, tonr, legacy timers and clock memory.
A permanent link
Put it on a CV, a portfolio or an application. The URL never changes.
Earned, not attended
Issued only after every module and a final assessment at 60%, with 3 attempts. That is why it stands up.

Learning is free. The certificate is optional.

Add it now and pay only when you have finished the course, or come back for it later. One-off, US$28.99, with a receipt.

Issued by Wartens Ltd (England and Wales, company no. 15262249) through the EDWartens training portal, as a Certificate of Completion for this self-paced course. Sold in India by Wartens Automation Private Limited. It is not a vendor certification, a university award or a CPD-accredited activity, and it does not certify competence on live equipment. Delivered electronically; see the refund policy.

FAQ

Common questions

Is this only for the S7-1500?

Most OBs and all the IEC timers work the same on both. The legacy S7 timers run only on the S7-1500, and a few error OB reactions differ; the notes say where. Everything is shown in PLCSIM.

Why do I need error OBs?

Without OB80 or OB121 a cycle-time overrun or a programming error can put the CPU into STOP, and the line stops with it. Without OB82 a module fault such as a wire break goes unreported. With them the fault is logged, an alarm can be raised, and the CPU keeps running.

Is the Siemens TIA Portal course really free?

Yes. Every module, practice task and assessment. You create an account so your progress is saved and the assessments can be marked. The certificate is the only paid item, and only if you want it.

What certificate do I get, and is it a Siemens qualification?

An EDWartens Certificate of Completion, issued when you pass the final assessment, with a verification code anyone can check. It is not a Siemens credential and is never described as one.

Who made the video lessons in the Siemens TIA Portal course?

The creators named in the Credits block at the foot of this page, on their own YouTube channels. EDWartens did not make the videos and the creators are not affiliated with EDWartens. What EDWartens wrote is the study plan, the notes, the practice tasks and the assessments.

How long does the Siemens TIA Portal course take?

Plan on about 6 hours in all, including the video lessons, notes and practice tasks. It is self-paced, so you work through the eight modules at your own speed.

Do I need a real PLC?

No. Everything runs in TIA Portal with S7-PLCSIM, which you can use on Siemens' 21-day trial.

Is the Siemens TIA Portal course free in India, and what does the certificate cost?

Yes. Learning costs ₹0 in India: every module, the written notes, the practice tasks and the final assessment, with no card and no trial period. The only paid item is the optional EDWartens Certificate of Completion, ₹599 including GST for this intermediate course, paid in rupees through Razorpay, and only if you want it after passing the final assessment.

Is there classroom PLC training in India as well?

Yes. EDWartens India runs the Automation Engineer Program (AEP), a classroom programme at its Electronic City centre in Bangalore. The Automation Engineer Program (AEP) teaches Siemens PLC programming in TIA Portal in person at our Electronic City centre, alongside the other PLC brands it covers. This free course is separate and fully online; it is a good way to try the subject before deciding on classroom training. Details are at edwartens.co.in/siemens-tia-portal-training-bangalore, and the programme itself at edwartens.co.in/courses/aep.

All course facts

Price: ₹0, free for good. No trial, no card. Comparable classroom training of this length costs about ₹2,499.
Who it is for: Engineering students, ITI and diploma holders, and working engineers in automation, electrical and instrumentation
Format: 8 self-paced modules, 3h 48m of video, written notes, a practice task per module and one final assessment.
Level: Intermediate. Intermediate. You should already write ladder in TIA Portal.
Brand: Siemens
Software: TIA Portal V21 trial (21 days) with S7-PLCSIM V21, on 64-bit Windows 11 Pro or Enterprise; any version from V15 on covers what this course teaches
Hardware: None, everything runs in simulation
Certificate: Optional EDWartens Certificate of Completion, ₹599 inclusive of GST for learners in India, verifiable by code. Not a vendor credential.
Video lessons by: Hegamurl (independent creators, credited below)
Language: English
Last updated: 27 September 2026
